Model

Specification codes

Descriptions

Smart transmitter


Form

D
G
A
HD

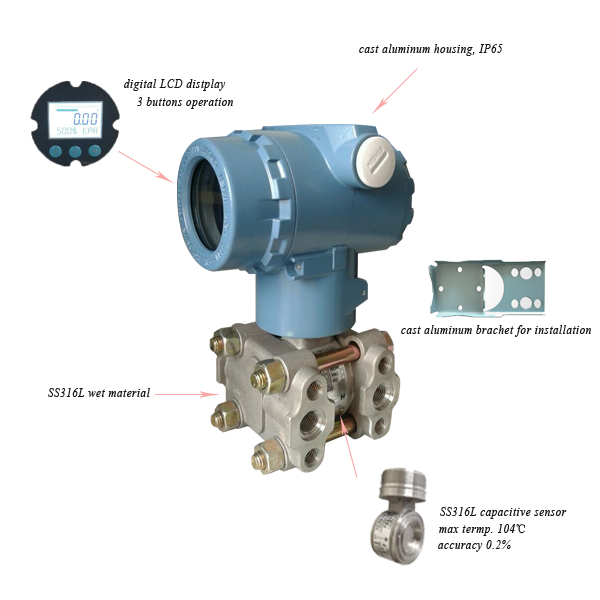

Differential Pressure Transmitter
Gauge Pressure Transmitter
Absolute Pressure Transmitter
High Hydrostatic Pressure Differential Pressure Transmitter




Measuring Range

2
3
4
5
6
7
8
9

0-0.4~1.5kPa
0-1~6kPa
0-6~40kPa
0-40~200kPa
0-200~1000kPa
0-1000~2000kPa
0-2000~10000kPa
0-10000~20000kPa

Output Signal:

E
S

4~20mA DC
4~20mA, HART protocol digital communication



Static Pressure

A
B
C
D
E
F

1MPa
4MPa
10MPa
16MPa
25MPa
32MPa




Structural Material


J1
J2
J3
J4
J5
J6
J7

Flange connection

Vent/drain valve

Isolation diaphragm

Filled liquid

316 stainless steel

316 stainless steel

316 stainless steel



Silicone Oil

316 stainless steel

316 stainless steel

Hastelloy C

316 stainless steel

316 stainless steel

Monel

316 stainless steel

316 stainless steel

Tantalum

Hastelloy C

Hastelloy C

Hastelloy C

Hastelloy C

Hastelloy C

Tantalum

Monel

Monel

Monel

Installation

A
B

High pressure on the left
High pressure on the right


Electrical Interfaces

1
2
3

M20×1.5 internal thread
G1/2 internal thread
1/2 NPT internal thread


Display Header

D
E
N

Digital header
Digital header with setting button,
no header


Installation Bracket

B1
B2
B3

Pipe  bended mounting plate
Board bended mounting tubes;
Pipe flat mounting plates


Process Joints

C0
C1

C2

1/2-14NPT taper pipe internal screwed joint
The rear of 1/2-14NPT pressure-drawing joint is welded with T-shaped screwed joint
M20×1.5 of pressure-drawing tube ∅14
